| 原厂 | TE Connectivity | 制造商型号 | 1838893-1 |
|---|---|---|---|
| 供应商 |
Element14 HK
新加坡仓
|
供应商型号 | 3394909 |
| 类型 | 圆形连接器-连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

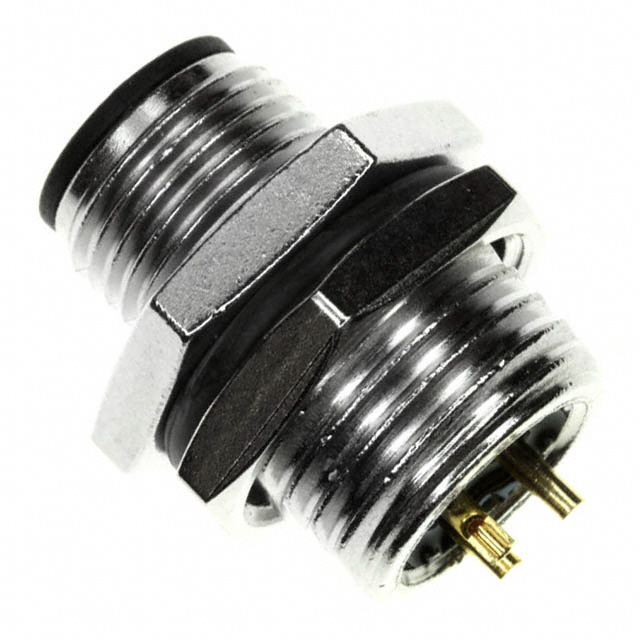

| 产品描述 | CONN PLUG MALE 3POS SOLDER CUP | ||
| 规格参数 | 数值 |
|---|---|
| Series | M12 |
| Connector Type | Plug, Male Pins |
| Number of Positions | 3 |
| Shell Size - Insert | M12-3 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Shielding | - |
| Current Rating | 5A |
| Voltage Rating | 250VAC/DC |
| Backshell Material, Plating | - |
| Cable Opening | - |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Operating Temperature | -25°C ~ 90°C |
