| 原厂 | Amphenol | 制造商型号 | 925-120C-51R |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ANFE-0987418 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 6 | 包装 | -- |

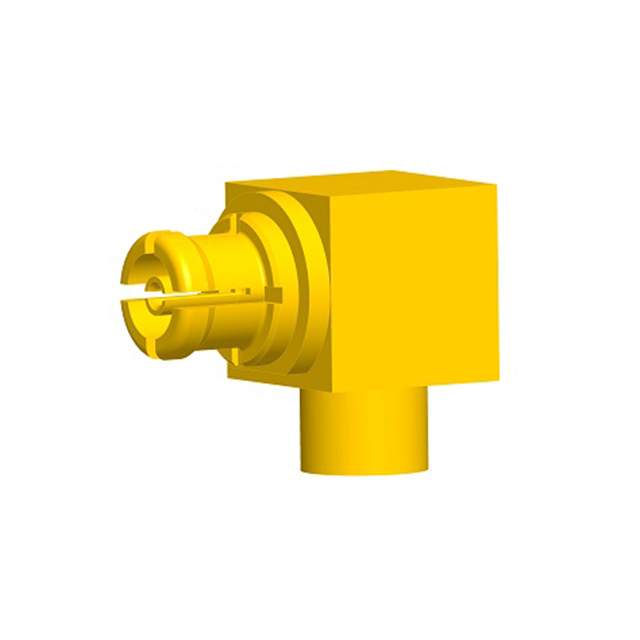

| 产品描述 | SMPM Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | SMPM |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | 0.047" Semi Rigid |
| Fastening Type | Snap-On |
| Frequency - Max | 18GHz |
| Features | - |
| Housing Color | Gold |
| Ingress Protection | - |
| Body Material | Beryllium Copper, Brass |
| Body Finish | Gold |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Dielectric Material | Polyetherimide (PEI); Polytetrafluoroethylene (PTFE) |
| Voltage Rating | - |
| Operating Temperature | -65°C ~ 165°C |
