| 原厂 | Murata | 制造商型号 | BNX023-01B |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | MURA-0186261 |
| 类型 | EMI滤波器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

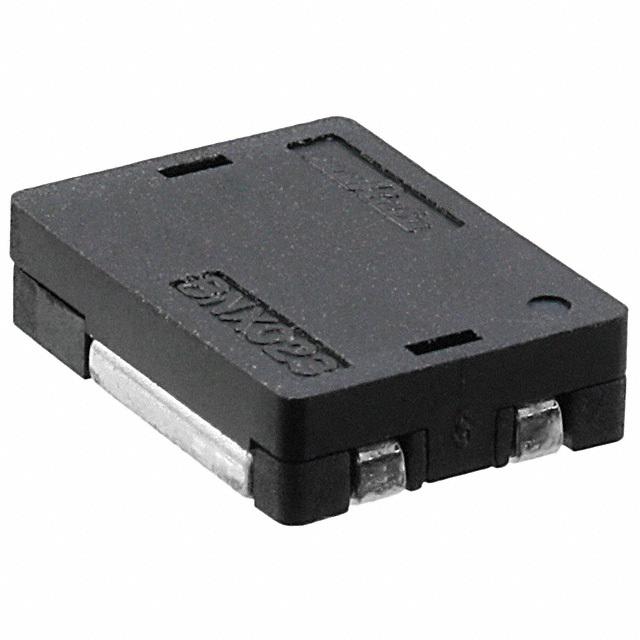

| 产品描述 | LC EMI Filter 5th Order Low Pass 2 Channel C = 1µF 15A 4-SMD, No Lead | ||
| 规格参数 | 数值 |
|---|---|
| Type | Low Pass |
| Filter Order | 5th |
| Technology | LC |
| Number of Channels | 2 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 35dB @ 1MHz ~ 1GHz |
| Resistance - Channel (Ohms) | 0.00043 |
| Current | 15A |
| Values | C = 1µF |
| ESD Protection | No |
| Operating Temperature | -40°C ~ 125°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 100V |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.476" L x 0.358" W (12.10mm x 9.10mm) |
| Height | 0.130" (3.30mm) |
