原厂 | Molex | 制造商型号 | 0524180410 |
---|---|---|---|
供应商 | chip 1 stop | 供应商型号 | MOLE-0134889 |
类型 | 矩形连接器-插座母插口 | 批号 | -- |
包装数 | 1 | 包装 | -- |

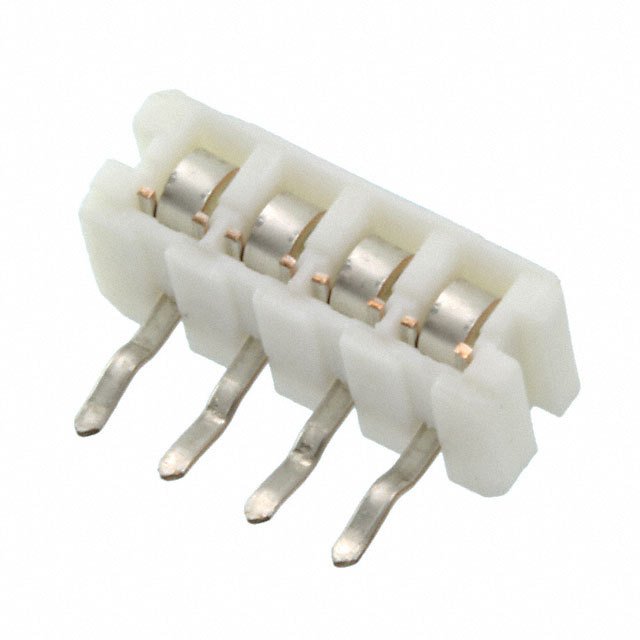

产品描述 | CONN RECEPT RT ANG 4POS 2MM |
规格参数 | 数值 |
---|---|
Series | 52418 |
Connector Type | Receptacle |
Contact Type | Female Socket |
Style | Board to Board |
Number of Positions | 4 |
Number of Positions Loaded | All |
Pitch - Mating | 0.079" (2.00mm) |
Number of Rows | 1 |
Row Spacing - Mating | - |
Mounting Type | Through Hole, Right Angle |
Termination | Press-Fit, Solder |
Fastening Type | Friction Lock |
Contact Finish - Mating | Tin |
Contact Finish Thickness - Mating | - |
Insulation Color | Natural |
Insulation Height | 0.124" (3.14mm) |
Contact Length - Post | 0.126" (3.20mm) |
Operating Temperature | -40°C ~ 105°C |
Material Flammability Rating | UL94 V-0 |
Contact Finish - Post | Tin |
Mated Stacking Heights | - |
Ingress Protection | - |
Features | - |
Current Rating | 1.5A |
Voltage Rating | 125VAC |
Applications | - |
Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
Contact Shape | Square |
Contact Material | Phosphor Bronze |
Contact Finish Thickness - Post | - |
