| 原厂 | TDK | 制造商型号 | B32520E6223K |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | EPCO-0029500 |
| 类型 | 薄膜电容 | 批号 | -- |
| 包装数 | 25 | 包装 | -- |

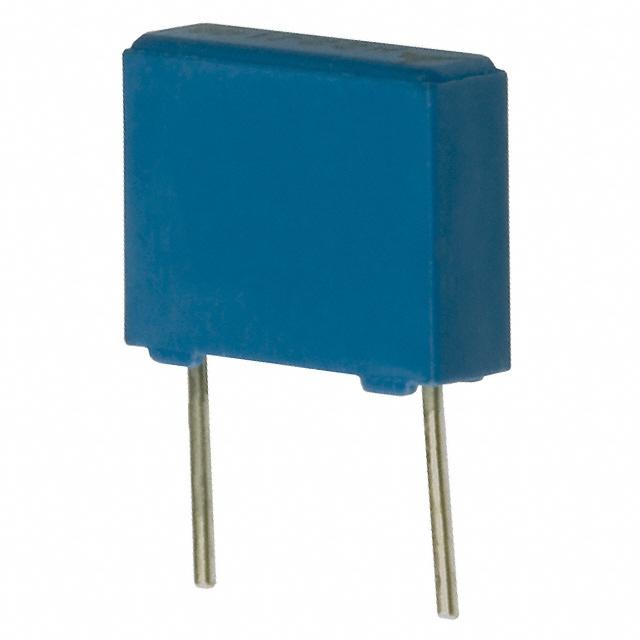

| 产品描述 | 0.022µF ±10% Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial | ||
| 规格参数 | 数值 |
|---|---|
| Capacitance | 0.022µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.394" L x 0.118" W (10.00mm x 3.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Features | - |
