| 原厂 | TDK | 制造商型号 | B82801B803A20 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | EPCO-0007816 |
| 类型 | 电流互感器 | 批号 | -- |
| 包装数 | 5 | 包装 | -- |

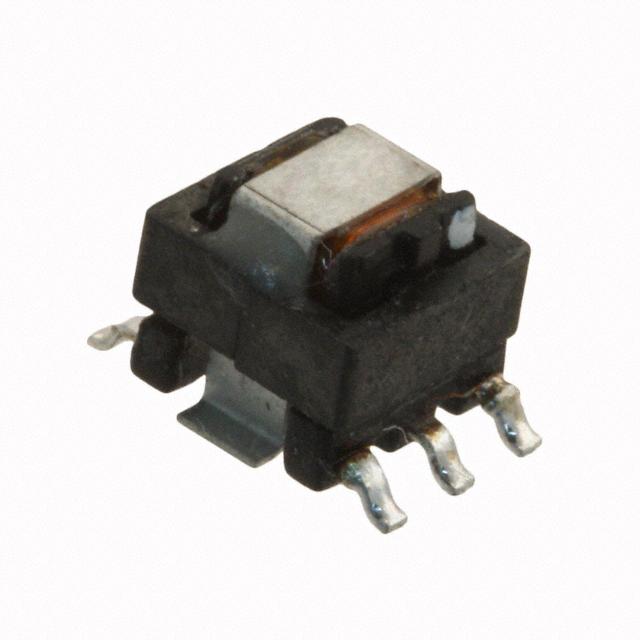

| 产品描述 | 20A 1 : 20 Current Sense Transformer 0.8 mOhm Primary, 400 mOhm Secondary 80µH Surface Mount | ||
| 规格参数 | 数值 |
|---|---|
| Type | Invasive |
| Current Rating | 20A |
| Inductance | 80µH |
| E.T. | - |
| Frequency Range | 50kHz ~ 1MHz |
| Turns Ratio - Primary:Secondary | 1 : 20 |
| DC Resistance (DCR) | 0.8 mOhm Primary, 400 mOhm Secondary |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.320" L x 0.280" W (8.13mm x 7.11mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Termination Style | Gull Wing |
| Weight | 0.014 oz (0.4g) |
