| 原厂 | Dialight | 制造商型号 | 6823435144F |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | DIAL-0027120 |
| 类型 | LED面板指示器 | 批号 | -- |
| 包装数 | 250 | 包装 | -- |

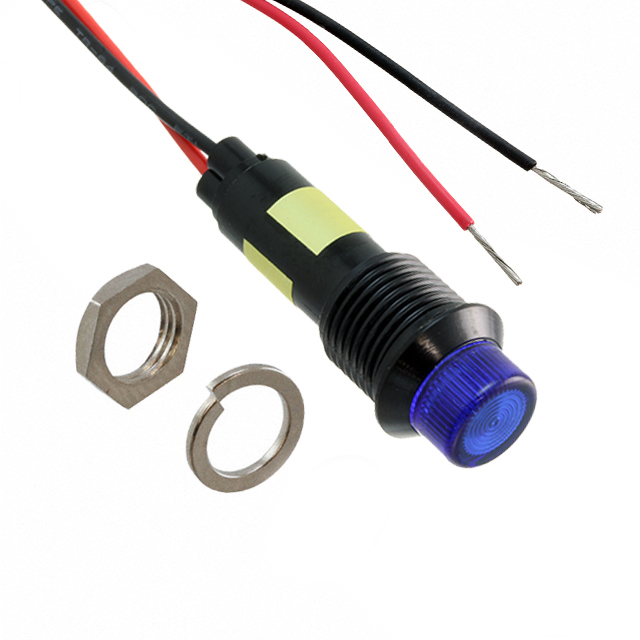

| 产品描述 | LED PANEL INDCATOR BLUE 24V | ||
| 规格参数 | 数值 |
|---|---|
| Series | 682 |
| Type | LED |
| Lamp Color | Blue |
| Lens Color | - |
| Lens Transparency | - |
| Ratings | DC |
| Voltage | 24V |
| Current | 30mA |
| Panel Cutout Shape | Round |
| Panel Cutout Dimensions | 0.49" (12.50mm) |
| Lens Style/Size | Round with Flat Top |
| Millicandela Rating | 5400mcd |
| Wavelength - Peak | 470nm |
| Viewing Angle | 30° |
| Termination Style | Wire Leads - 6" (152.40mm) |
| Ingress Protection | - |
| Features | - |
