| 原厂 | Amphenol | 制造商型号 | 082-5380-RFX |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ANFE-0408529 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

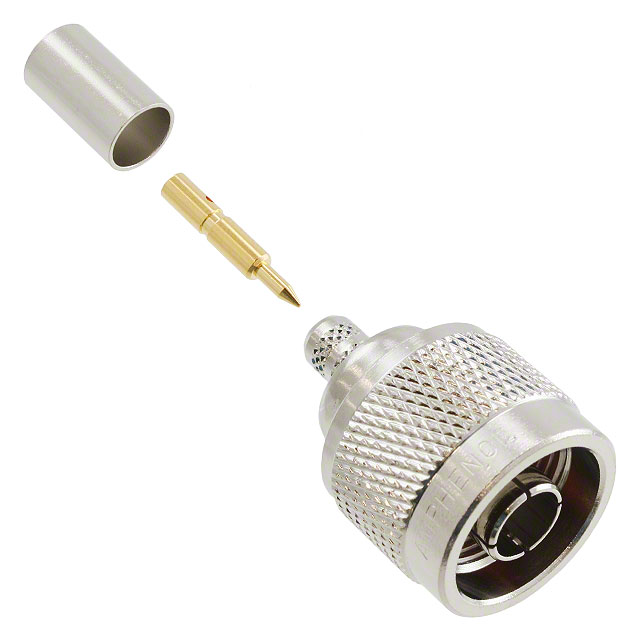

| 产品描述 | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | N Type |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Shield Termination | Crimp |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 |
| Fastening Type | Threaded |
| Frequency - Max | 11GHz |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | Weatherproof |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | 1500V |
| Operating Temperature | -65°C ~ 165°C |
