| 原厂 | TDK | 制造商型号 | YFF21PC1A105M |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TDK1-0074049 |
| 类型 | 馈通式电容器 | 批号 | -- |
| 包装数 | 25 | 包装 | -- |

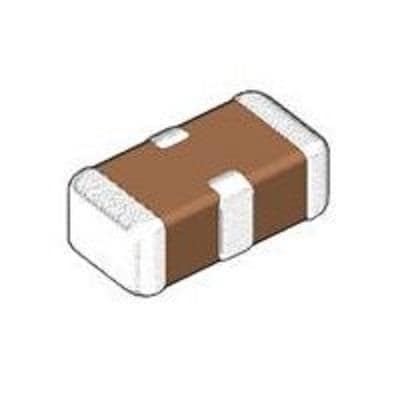

| 产品描述 | Feed Through Capacitors 1.0uF 10volt +50-10% 2.0x1.25x0.85mm | ||
| 规格参数 | 数值 |
|---|---|
| RoHS | Details |
| Series | YFF-P |
| Product | Three Terminal Filter Capacitors |
| Capacitance | 1 uF |
| Voltage Rating DC | 10 VDC |
| Tolerance | 20 % |
| Current Rating | 4 A |
| Ground Terminal | 0.4 mm |
| Termination Style | SMD/SMT |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | 0805 (2012 metric) |
| Length | 2 mm |
| Width | 1.25 mm |
| Height | 0.85 mm |
| Operating Temperature Range | - 55 C to + 85 C |
| Type | Three Terminal Filter SMD for Power Line |
| Voltage Rating | 10 V |
| Capacitance - nF | 1000 nF |
| Factory Pack Quantity | 4000 |
| Part # Aliases | CKD510JB1A105S |
| Unit Weight | 0.000194 oz |
