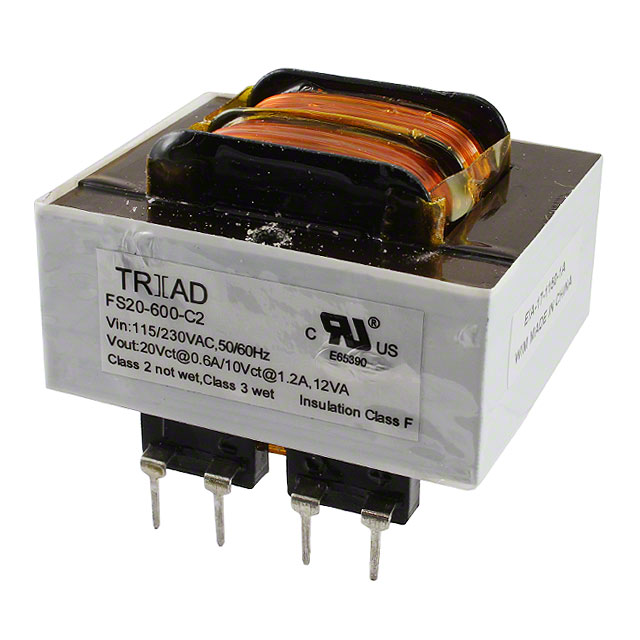

| 原厂 | Triad Magnetics | 制造商型号 | FS20-600-C2-B |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TRIA-0002379 |
| 类型 | 电源变压器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |
| 产品描述 | XFRMR LAMINATED 12VA THRU HOLE | ||
| 规格参数 | 数值 |
|---|---|
| Type | Laminated Core |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 10V, Series 20V |
| Current - Output (Max) | Parallel 1.2A, Series 600mA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 12 VA |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Size / Dimension | 47.63mm L x 39.67mm W |
| Height - Seated (Max) | 36.50mm |
| Voltage - Isolation | 4200Vrms |
