| 原厂 | TE Connectivity | 制造商型号 | 1825966-1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0561647 |
| 类型 | 触摸开关 | 批号 | -- |
| 包装数 | 10 | 包装 | -- |

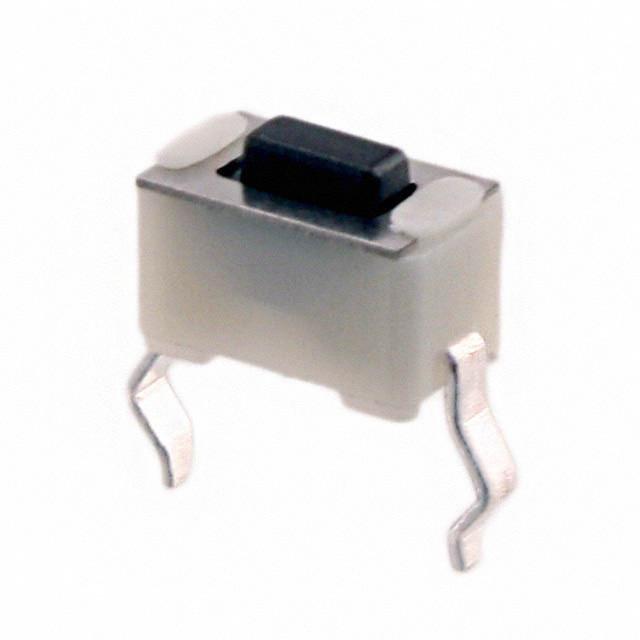

| 产品描述 | Tactile Switch SPST-NO Top Actuated Through Hole | ||
| 规格参数 | 数值 |
|---|---|
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Rectangular Button |
| Mounting Type | Through Hole |
| Actuator Height off PCB, from Pins | 4.30mm |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 6.00mm x 3.50mm |
| Illumination | Non-Illuminated |
| Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - |
| Operating Force | 130gf |
| Ingress Protection | - |
| Features | - |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Switch Travel | 0.25mm |
| Mechanical Life | 100,000 Cycles |
| Operating Temperature | -35°C ~ 85°C |
