| 原厂 | NMB | 制造商型号 | 12038GE-12N-YA-F0 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | NMB1-0004470 |
| 类型 | DC风扇 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

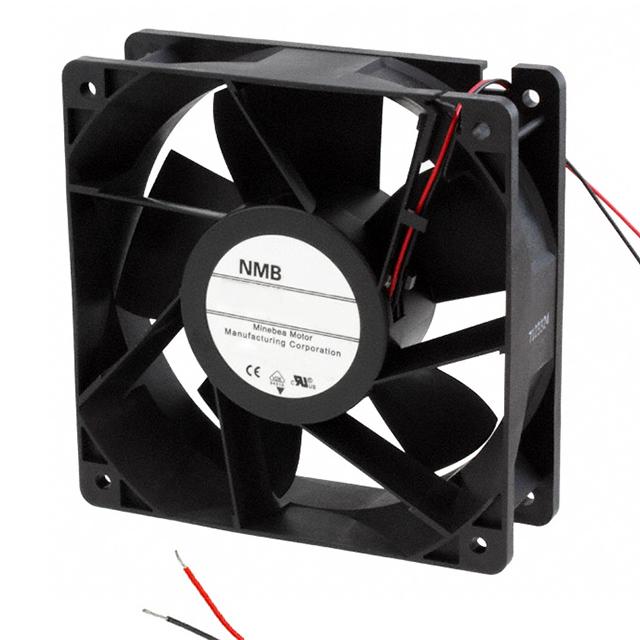

| 产品描述 | FAN AXIAL 120X38MM 12VDC WIRE | ||
| 规格参数 | 数值 |
|---|---|
| Series | 12038GE |
| Voltage - Rated | 12VDC |
| Size / Dimension | Round - 120mm Dia |
| Width | 38.00mm |
| Air Flow | 45.0 CFM (1.26m³/min) |
| Static Pressure | 0.310 in H2O (77.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Noise | 38.0 dB |
| Power (Watts) | 2.88W |
| RPM | 1950 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 104°F (-40 ~ 40°C) |
| Approvals | - |
| Current Rating | 0.240A |
| Voltage Range | 7 ~ 13.2VDC |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 70000 Hrs @ -20°C |
