| 原厂 | TDK | 制造商型号 | B82731M2701A30 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | EPCO-0012877 |
| 类型 | 共模扼流圈 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

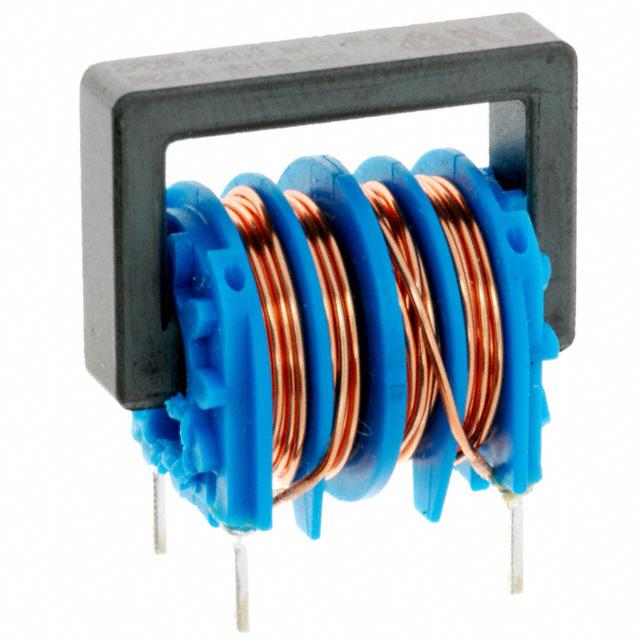

| 产品描述 | 27mH @ 10kHz 2 Line Common Mode Choke Through Hole 700mA DCR 1 Ohm (Typ) | ||
| 规格参数 | 数值 |
|---|---|
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 27mH @ 10kHz |
| Current Rating (Max) | 700mA |
| DC Resistance (DCR) (Max) | 1 Ohm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approvals | ENEC, UR, VDE |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.827" L x 0.591" W (21.00mm x 15.00mm) |
| Height (Max) | 0.807" (20.50mm) |
| Package / Case | Vertical, 4 PC Pin |
