| 原厂 | Red Lion | 制造商型号 | PAXI0020 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | REDL-0000325 |
| 类型 | 计数器/小时器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

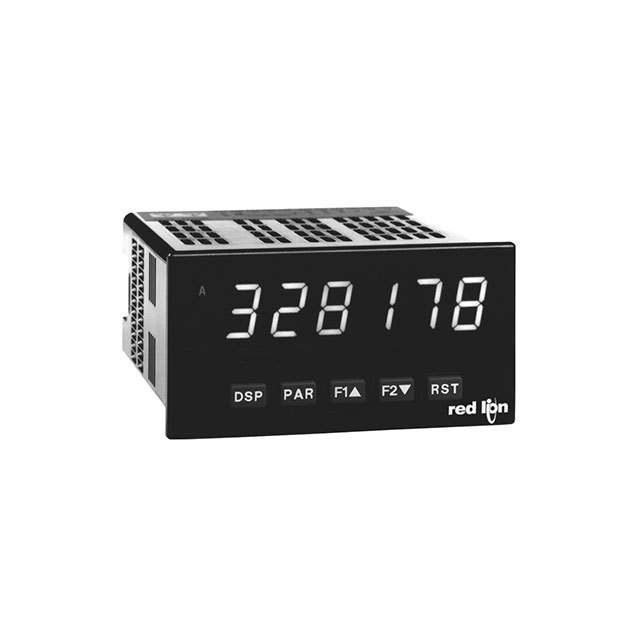

| 产品描述 | TACHOMETER LED 6 CHAR 85-250V | ||
| 规格参数 | 数值 |
|---|---|
| Type | Tachometer, Totalizer |
| Operating Mode | Up, Down, Command, Quadrature |
| Count Rate | 34kHz, 50Hz |
| Time Format | |
| Number of Characters Per Row | 6 |
| Display Type | LED - Red Characters |
| Display Characters - Height | 0.560" (14.20mm) |
| Input Type | No Voltage, Voltage |
| Output Type | Option Cards Available |
| Voltage - Supply | 85 ~ 250VAC |
| Reset | External, Front Panel |
| Panel Cutout Dimensions | Rectangular - 92.00mm x 45.00mm |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
