| 原厂 | Molex | 制造商型号 | 1301550134 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | MOLE-0309215 |
| 类型 | 电源连接器-输入输出模块 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

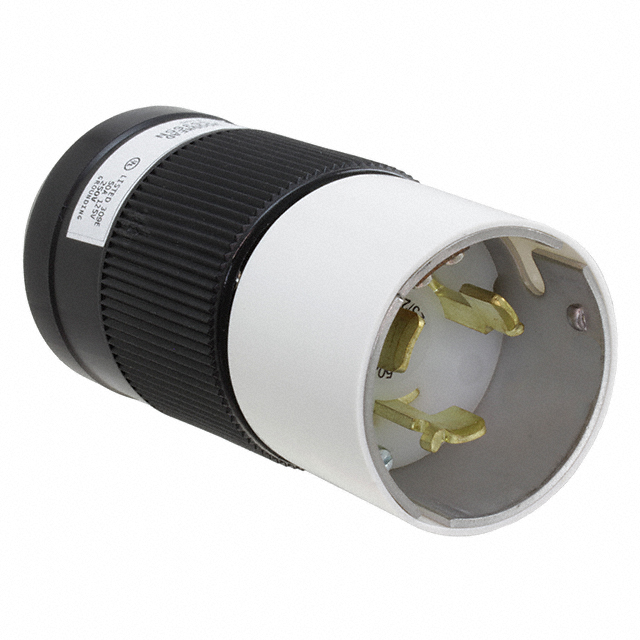

| 产品描述 | PLUG 50A 3P4W 125/250V | ||
| 规格参数 | 数值 |
|---|---|
| Series | 130155 |
| Connector Style | NON-NEMA (3P4W), California Style |
| Connector Type | Receptacle, Male Blades |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 50A |
| Voltage - UL | 125/250VAC |
| Filter Type | Unfiltered - Commercial |
| Fuse | No |
| Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Screw |
| Switch Features | - |
| Features | Cord-Clamp Strain Relief, Locking Blade |
| Fuse Holder, Drawer | - |
| Panel Cutout Dimensions | - |
| Panel Thickness | - |
| Material Flammability Rating | - |
| Ingress Protection | - |
| Approvals | UL |
