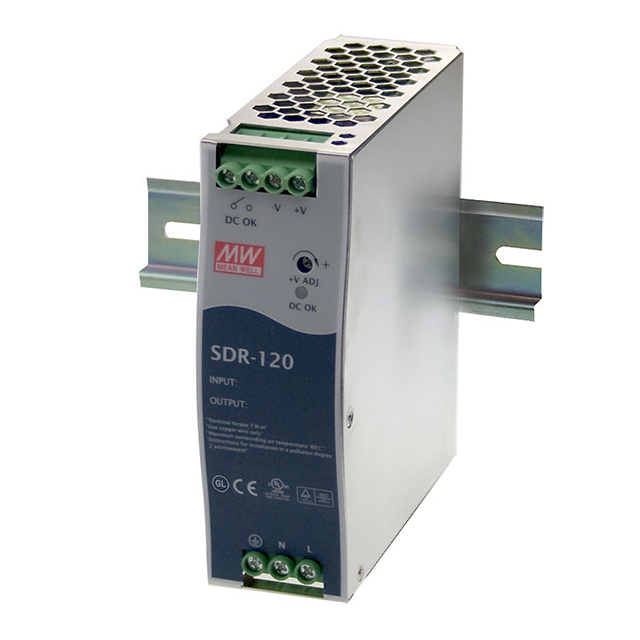

| 原厂 | MEAN WELL | 制造商型号 | SDR-120-24 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | MWE1-0001842 |
| 类型 | 外接AC/DC转换器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |
| 产品描述 | AC/DC CONVERTER 24V 120W | ||
| 规格参数 | 数值 |
|---|---|
| Series | SDR-120 |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 88 ~ 264 VAC, 124 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 120W |
| Applications | Hazardous Locations, ITE (Commercial) |
| Voltage - Isolation | 3kV |
| Efficiency | 91% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | DIN Rail |
| Size / Dimension | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) |
| Minimum Load Required | No |
| Approvals | CB, CE, cURus, TUV |
