| 原厂 | TE Connectivity | 制造商型号 | 180BCF10R |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0508496 |
| 类型 | 电力线滤波器模块 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

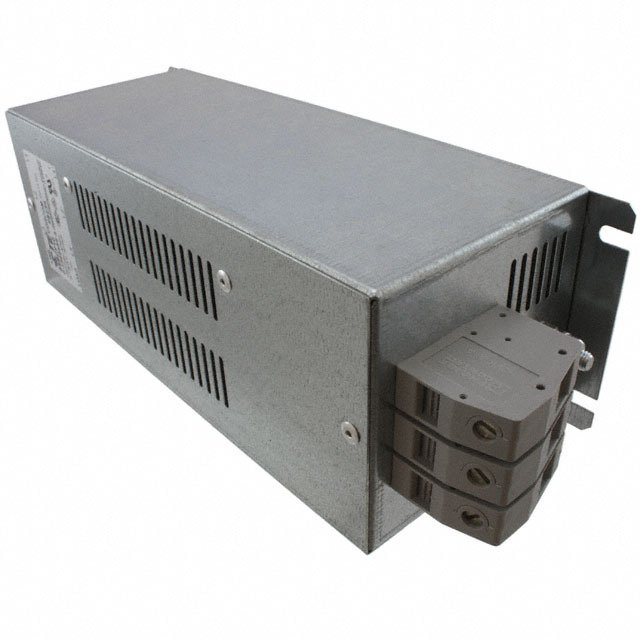

| 产品描述 | LINE FILTER 180A CHASSIS MOUNT | ||
| 规格参数 | 数值 |
|---|---|
| Filter Type | Three Phase (Delta) |
| Configuration | Two Stage |
| Voltage - Rated DC | - |
| Voltage - Rated AC | - |
| Voltage - Rated AC (Phase to Ground/Neutral) | 277V |
| Voltage - Rated AC (Phase to Phase) | 480V |
| Current | 180A |
| Frequency - Operating | 50/60Hz |
| Applications | General Purpose |
| Approvals | CSA, UR, VDE |
| Operating Temperature | -10°C ~ 50°C |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block |
| Inductance | 340µH |
