| 原厂 | TE Connectivity | 制造商型号 | 7012AF |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0007895 |
| 类型 | 时间继电器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

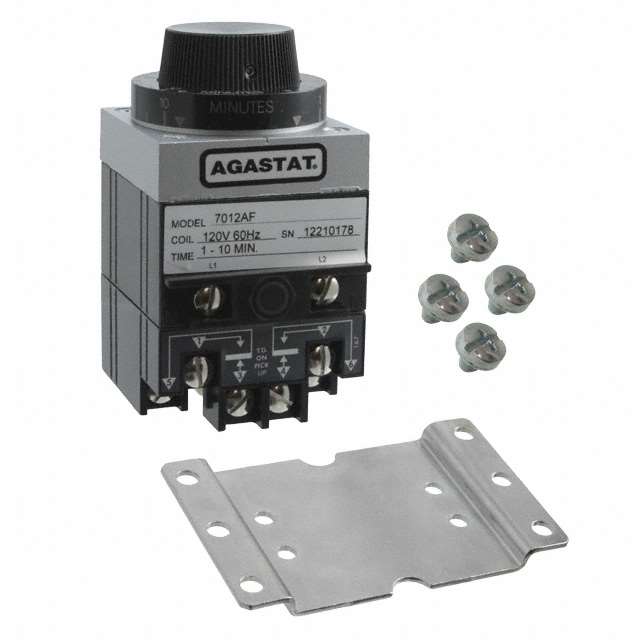

| 产品描述 | On-Delay Time Delay Relay DPDT (2 Form C) 1 Min ~ 10 Min Delay 10A @ 240VAC Panel Mount | ||
| 规格参数 | 数值 |
|---|---|
| Relay Type | Integrated |
| Function | On-Delay |
| Circuit | DPDT (2 Form C) |
| Delay Time | 1 Min ~ 10 Min |
| Output Type | Mechanical Relay |
| Contact Rating @ Voltage | 10A @ 240VAC |
| Voltage - Supply | 120VAC |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
