| 原厂 | Amphenol | 制造商型号 | T 3477 009 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | ANFE-0005508 |
| 类型 | 圆形连接器-连接器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

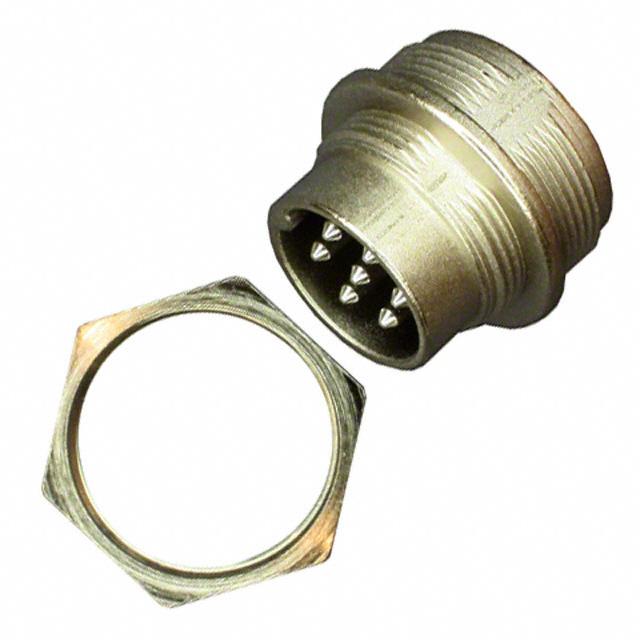

| 产品描述 | 7 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | ||
| 规格参数 | 数值 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 7 |
| Shell Size - Insert | DIN |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Ingress Protection | IP40 |
| Shell Material, Finish | Die Cast, Nickel Plated |
| Contact Finish | Silver |
| Features | Shielded |
| Contact Finish Thickness | - |
| Current Rating | 5A |
| Voltage - Rated | 300V |
| Operating Temperature | -40°C ~ 100°C |
