| 原厂 | TE Connectivity | 制造商型号 | 4-1571986-6 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0015383 |
| 类型 | 摇臂开关 | 批号 | -- |
| 包装数 | 20 | 包装 | -- |

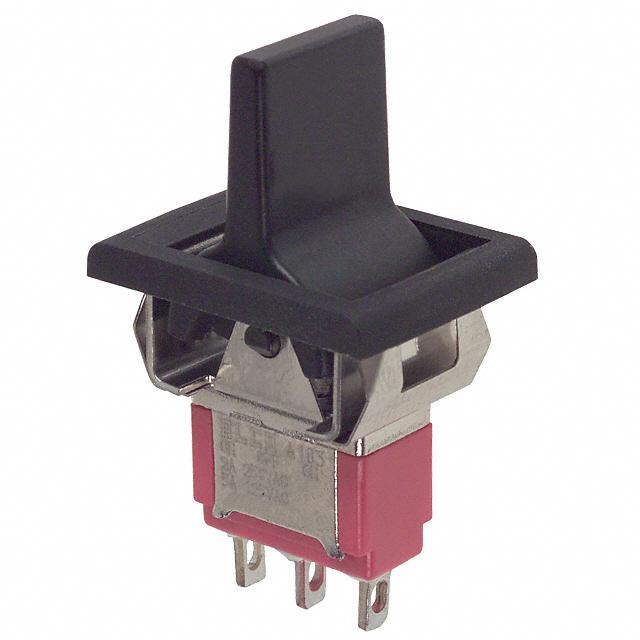

| 产品描述 | Rocker Switch SPDT 5A (AC/DC) 120V Panel Mount, Snap-In | ||
| 规格参数 | 数值 |
|---|---|
| Circuit | SPDT |
| Switch Function | On-Off-On |
| Current Rating | 5A (AC/DC) |
| Voltage Rating - AC | 120V |
| Voltage Rating - DC | 28V |
| Actuator Type | Paddle |
| Color - Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Mounting Type | Panel Mount, Snap-In |
| Termination Style | Solder Lug |
| Ingress Protection | - |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Rectangular - 15.24mm x 12.70mm |
| Operating Temperature | -30°C ~ 85°C |
| Mechanical Life | - |
| Electrical Life | 30,000 Cycles |
