| 原厂 | TE Connectivity | 制造商型号 | 42864-2 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0071205 |
| 类型 | 其他连接器-端子 | 批号 | -- |
| 包装数 | 3000 | 包装 | -- |

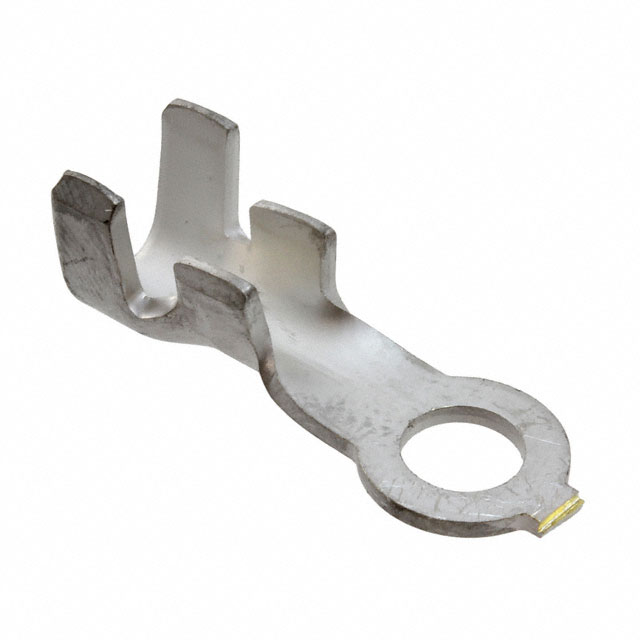

| 产品描述 | CONN RING CIRC 10-12AWG #10 | ||
| 规格参数 | 数值 |
|---|---|
| Series | - |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Thickness | 0.040" (1.02mm) |
| Width - Outer Edges | 0.343" (8.71mm) |
| Length - Overall | 0.921" (23.39mm) |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Features | - |
| Color | - |
| Contact Material | Brass |
| Contact Finish | Tin |
| Insulation Diameter | 0.170" ~ 0.210" (4.32mm ~ 5.33mm) |
| Material - Insulation | - |
