| 原厂 | Phoenix Contact | 制造商型号 | 3074091 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | PENX-0109949 |
| 类型 | 端子-DIN导轨 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

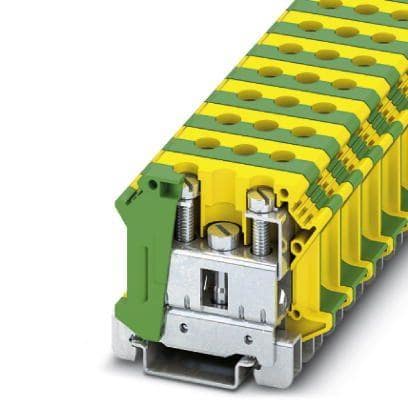

| 产品描述 | CONN TERM BLK GROUND 2-18 AWG | ||
| 规格参数 | 数值 |
|---|---|
| Series | CLIPLINE UTI |
| Type | Ground, Earth |
| Disconnect Type | - |
| Number of Positions | 2 |
| Number of Levels | 1 |
| Terminal - Width | 15.0mm |
| Termination Style | Screw |
| Current - IEC | 125A |
| Voltage - IEC | - |
| Voltage - UL | - |
| Wire Gauge or Range - AWG | 2-18 AWG |
| Wire Gauge or Range - mm² | 0.75-35mm² |
| Features | - |
| Color | Green, Yellow |
| Fuse Type | - |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 |
| Stripping Length | 16mm |
