| 原厂 | Molex | 制造商型号 | 19054-0086 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | MOLE-0021473 |
| 类型 | 其他连接器-未分类 | 批号 | -- |
| 包装数 | 1000 | 包装 | -- |

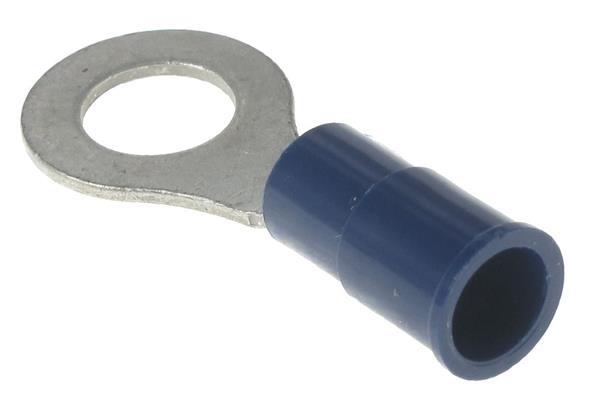

| 产品描述 | Terminals RING 14-16 AWG 1/4 STUD | ||
| 规格参数 | 数值 |
|---|---|
| RoHS | Details |
| Product | Screw Terminals |
| Type | Ring |
| Stud / Tab Size | # 14 |
| Wire Gauge | 16 AWG - 14 AWG |
| Termination Style | Crimp |
| Insulation | Insulated |
| Color | Blue |
| Contact Plating | Tin |
| Contact Material | Copper |
| Series | 19054 |
| Tradename | InsulKrimp |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Material | Copper |
| Factory Pack Quantity | 1000 |
| Part # Aliases | 0190540086 190540086 |
| Unit Weight | 0.047479 oz |
