| 原厂 | SL Power | 制造商型号 | GB60S15K |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | SLPW-0001042 |
| 类型 | 外接AC/DC转换器 | 批号 | -- |
| 包装数 | 2 | 包装 | -- |

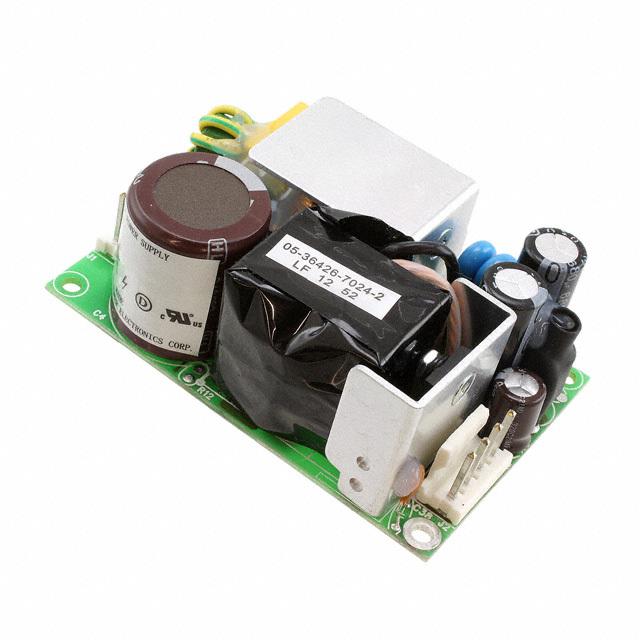

| 产品描述 | Open Frame AC DC Converter 1 Output 15V 4A 80 ~ 270 VAC Input | ||
| 规格参数 | 数值 |
|---|---|
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 270 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 60W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4kV (4000V) |
| Efficiency | 85% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) |
| Minimum Load Required | No |
| Approvals | CE |
| Power (Watts) - Max | 60W |
