| 原厂 | TDK | 制造商型号 | B32023B3104K |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | EPCO-0057513 |
| 类型 | 薄膜电容 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

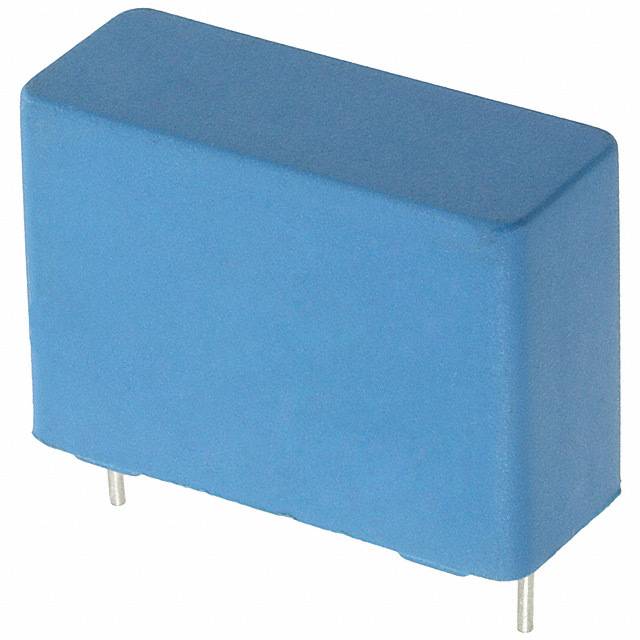

| 产品描述 | 0.10µF ±10% Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial | ||
| 规格参数 | 数值 |
|---|---|
| Capacitance | 0.10µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.413" W (26.50mm x 10.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression |
| Features | Y2 Safety Rated |
