| 原厂 | TE Connectivity | 制造商型号 | 1825421-1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0058700 |
| 类型 | 摇臂开关 | 批号 | -- |
| 包装数 | 5 | 包装 | -- |

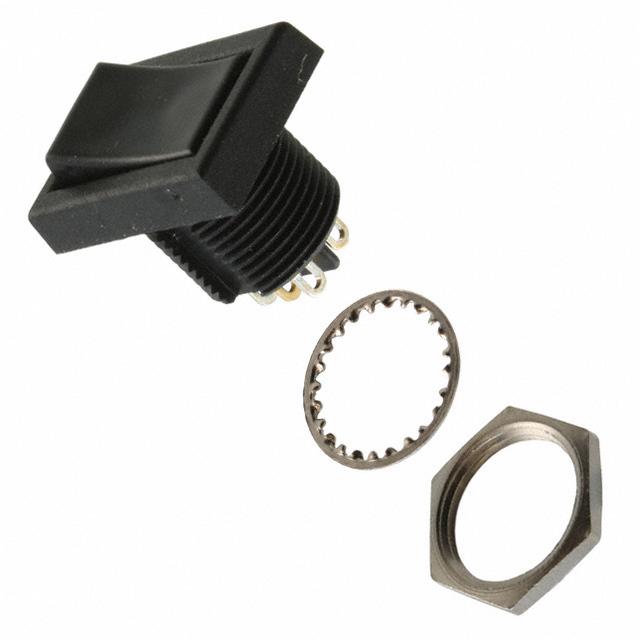

| 产品描述 | Rocker Switch DPDT 3A (AC) 125V Panel Mount, Threaded Body with Nut | ||
| 规格参数 | 数值 |
|---|---|
| Circuit | DPDT |
| Switch Function | On-On |
| Current Rating | 3A (AC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | - |
| Actuator Type | Concave (Curved) |
| Color - Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Mounting Type | Panel Mount, Threaded Body with Nut |
| Termination Style | Solder Lug |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Circular - 11.90mm Dia |
| Operating Temperature | -20°C ~ 80°C |
| Mechanical Life | 100,000 Cycles |
| Electrical Life | 20,000 Cycles |
