| 原厂 | Molex | 制造商型号 | 38720-3210 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | MOLE-0044977 |
| 类型 | 端子-栅栏式 | 批号 | -- |
| 包装数 | 25 | 包装 | -- |

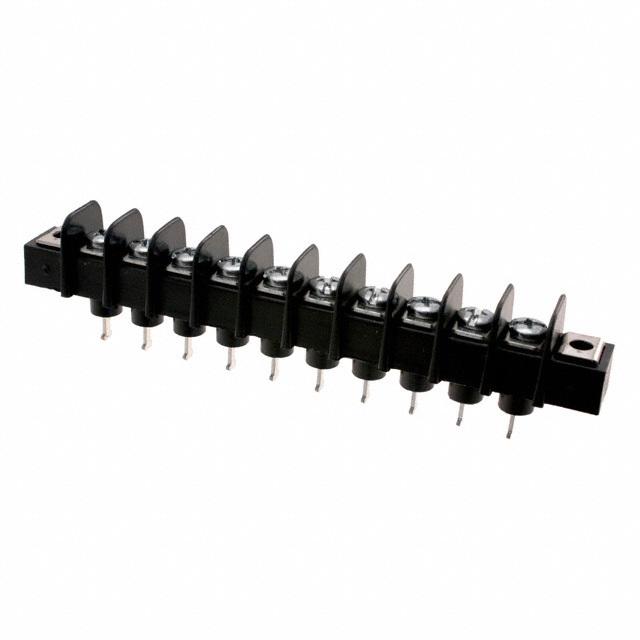

| 产品描述 | CONN BARRIER STRP 10CIRC 0.375" | ||
| 规格参数 | 数值 |
|---|---|
| Series | Beau™ 38720 |
| Terminal Block Type | Barrier Block |
| Number of Circuits | 10 |
| Number of Wire Entries | 10 |
| Pitch | 0.375" (9.53mm) |
| Number of Rows | 1 |
| Current Rating | 15A |
| Voltage Rating | 300V |
| Wire Gauge | 14-22 AWG |
| Top Termination | Screws |
| Bottom Termination | Solder Turret, Insulated |
| Barrier Type | 2 Wall (Dual) |
| Features | Flange |
| Color | Black |
| Terminal Screw Material | Steel |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Mounting Type | Chassis, Panel |
| Operating Temperature | -40°C ~ 100°C |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | - |
