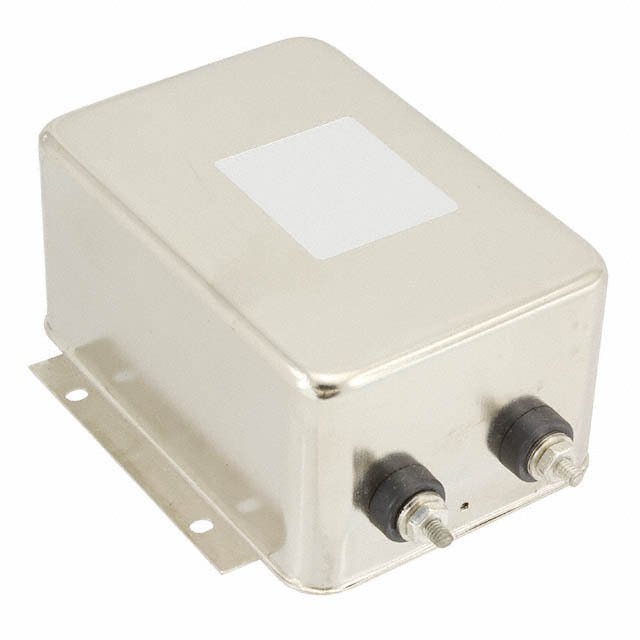

| 原厂 | TE Connectivity | 制造商型号 | 15EHT1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0592042 |
| 类型 | 电力线滤波器模块 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |
| 产品描述 | LINE FILTER 250VAC 15A CHASS MNT | ||
| 规格参数 | 数值 |
|---|---|
| Filter Type | Single Phase |
| Configuration | Two Stage |
| Voltage - Rated DC | - |
| Voltage - Rated AC | 250V |
| Voltage - Rated AC (Phase to Ground/Neutral) | - |
| Voltage - Rated AC (Phase to Phase) | - |
| Current | 15A |
| Frequency - Operating | 50/60Hz |
| Applications | General Purpose |
| Approvals | CSA, UR, VDE |
| Operating Temperature | -10°C ~ 40°C |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect |
| Inductance | 9.5mH |
