| 原厂 | TE Connectivity | 制造商型号 | 8-176314-6 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | TYCO-0199292 |
| 类型 | 矩形连接器-针座公插针 | 批号 | -- |
| 包装数 | 200 | 包装 | -- |

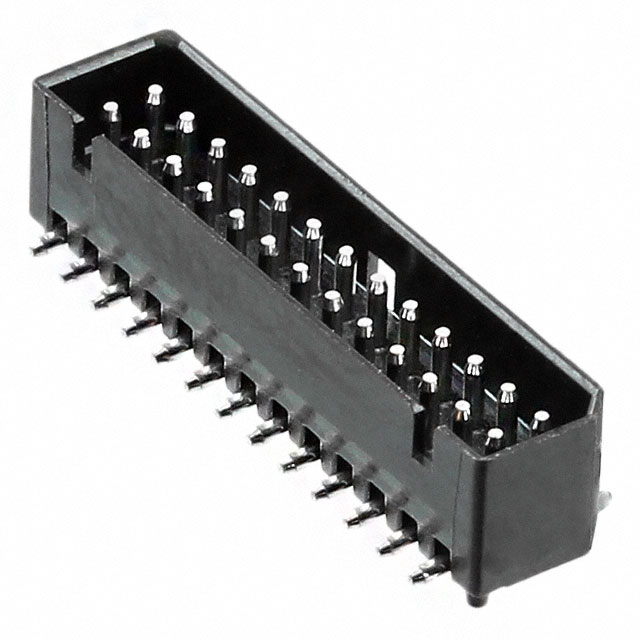

| 产品描述 | CONN HEADER 26POS DUAL VERT TIN | ||
| 规格参数 | 数值 |
|---|---|
| Series | Fine Pitch |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.156" (3.96mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | Board Guide |
| Operating Temperature | -30°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating | 0.5A |
| Voltage Rating | 50V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 31.5µin (0.80µm) |
| Applications | - |
