| 原厂 | Panasonic | 制造商型号 | ECW-H12104JV |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | PANA-0450548 |
| 类型 | 薄膜电容 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

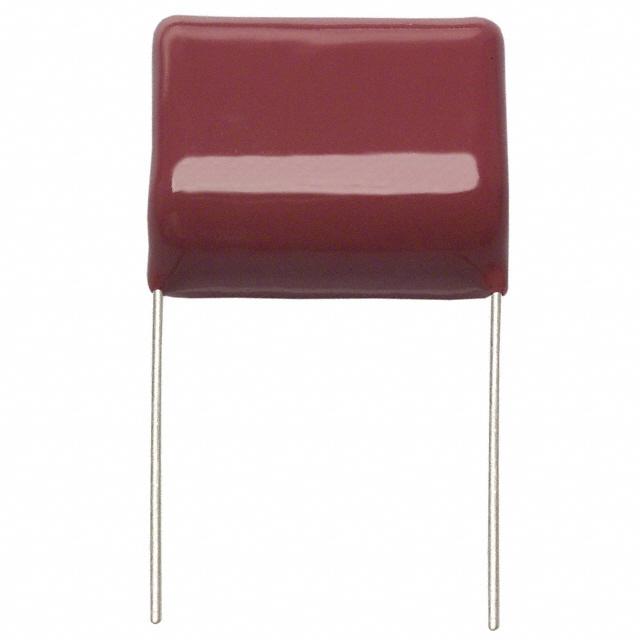

| 产品描述 | CAP FILM 0.1UF 5% 1.25KVDC RAD | ||
| 规格参数 | 数值 |
|---|---|
| Capacitance | 0.1µF |
| Tolerance | ±5% |
| Voltage Rating - AC | |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.102" L x 0.610" W (28.00mm x 15.50mm) |
| Height - Seated (Max) | 1.004" (25.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.984" (25.00mm) |
| Applications | High Frequency, Switching |
| Ratings | |
| Features |
