| 原厂 | OMRON | 制造商型号 | XW4L-03A1-V1 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | OMRO-0129359 |
| 类型 | 端子-线对板 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

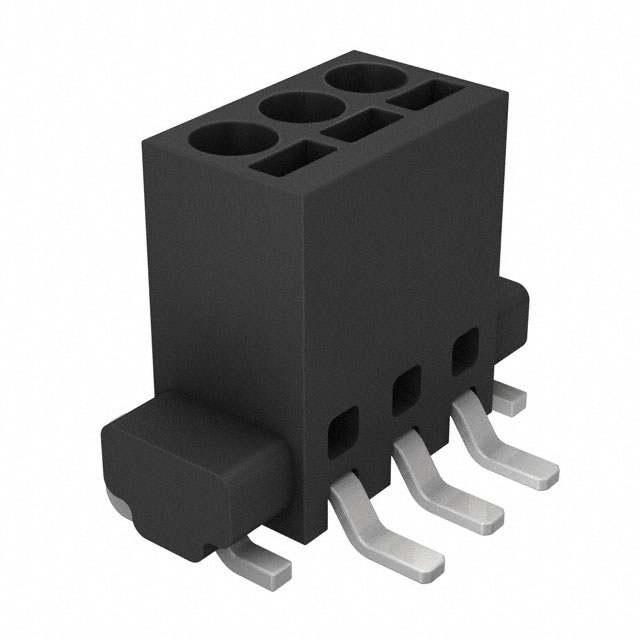

| 产品描述 | TERM BLOCK 3POS TOP 2.54MM SMD | ||
| 规格参数 | 数值 |
|---|---|
| Series | XW4 |
| Number of Levels | 1 |
| Positions Per Level | 3 |
| Pitch | 0.100" (2.54mm) |
| Mating Orientation | Vertical with Board |
| Current | 6A |
| Voltage | 160V |
| Wire Gauge | 20-26 AWG |
| Mounting Type | Surface Mount |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Features | Board Guide |
| Color | Black |
| Operating Temperature | -45°C ~ 125°C |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Torque - Screw | - |
| Screw Thread | - |
