| 原厂 | AVX Corp/Kyocera Corp | 制造商型号 | KC5032C27.0000C30E00 |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | KYOC-0280543 |
| 类型 | 振荡器 | 批号 | -- |
| 包装数 | 1 | 包装 | -- |

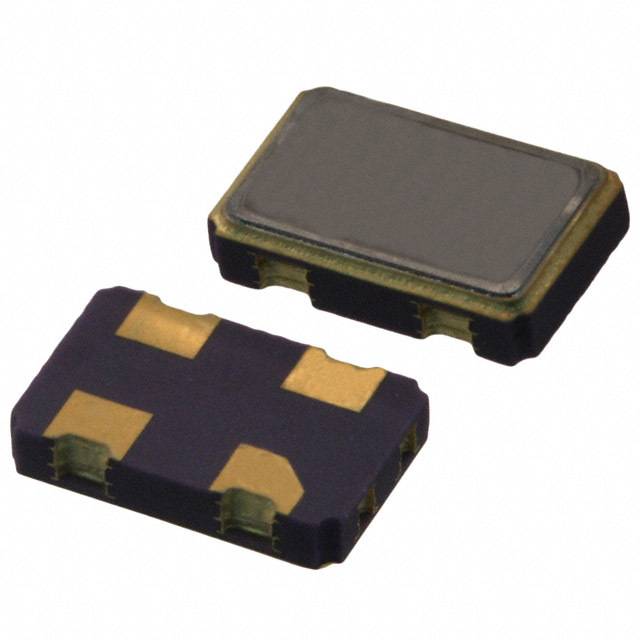

| 产品描述 | OSC XO 27.000MHZ CMOS SMD | ||
| 规格参数 | 数值 |
|---|---|
| Type | XO (Standard) |
| Frequency | 27MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | |
| Operating Temperature | -10°C ~ 70°C |
| Current - Supply (Max) | 15mA |
| Ratings | |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
