| 原厂 | Hirose Electric Co Ltd | 制造商型号 | A3-4PA-2SV(71) |
|---|---|---|---|
| 供应商 | chip 1 stop | 供应商型号 | HIRO-0034195 |
| 类型 | 矩形连接器-针座公插针 | 批号 | -- |
| 包装数 | 5 | 包装 | -- |

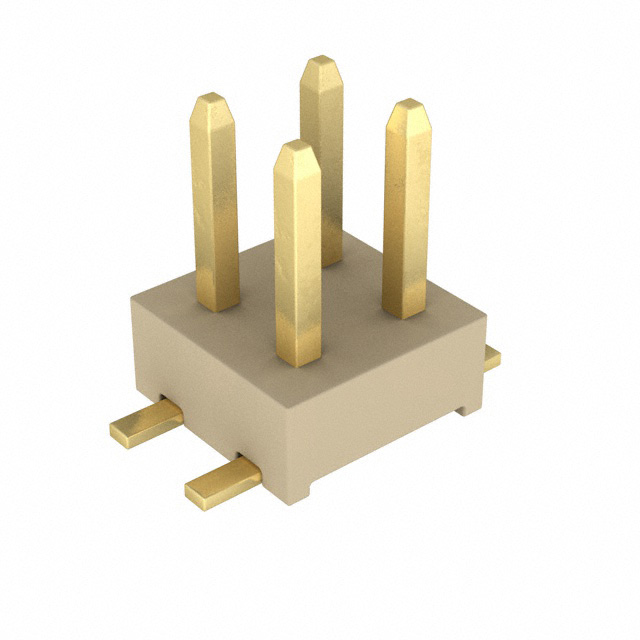

| 产品描述 | CONN HEADER 4POS 2MM GOLD SMD | ||
| 规格参数 | 数值 |
|---|---|
| Series | A3 |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.138" (3.50mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.071" (1.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Brown |
| Current Rating | 1A |
| Voltage Rating | 200V |
| Mated Stacking Heights | 6mm, 8.8mm |
| Contact Finish Thickness - Post | Flash |
| Applications | - |
