| 原厂 | OSRAM Opto Semiconductors Inc. | 制造商型号 | GH CS8PM1.24-4T2U-1 |
|---|---|---|---|
| 供应商 | A7B015 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | OOSGHCS8PM1.24-4T> |
| 类型 | LED彩色照明 | 批号 | 201732 |
| 包装数 | 600 | 包装 | -- |

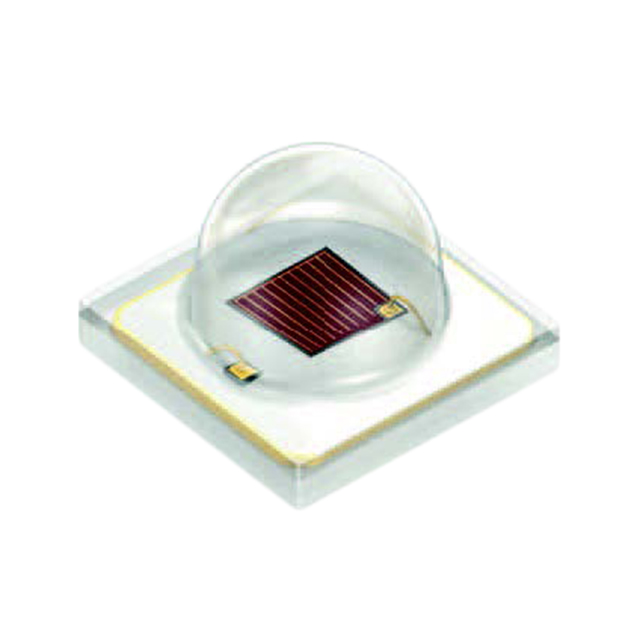

| 产品描述 | LED OSLON SSL80 RED 657NM SMD | ||
| 规格参数 | 数值 |
|---|---|
| Series | OSLON® SSL 80 |
| Color | Red |
| Wavelength | 656nm (646nm ~ 666nm) |
| Current - Test | 350mA |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Lumens/Watt @ Current - Test | - |
| Current - Max | 1A |
| Flux @ Current/Temperature - Test | 530mW (400mW ~ 560mW) |
| Temperature - Test | 25°C |
| Viewing Angle | 80° |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.091" (2.31mm) |
| Thermal Resistance of Package | 5.3°C/W |
