| 原厂 | Pomona Electronics | 制造商型号 | 3750-2 |
|---|---|---|---|
| 供应商 |
Element14 HK
新加坡仓
|
供应商型号 | 2406404 |
| 类型 | 测试连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

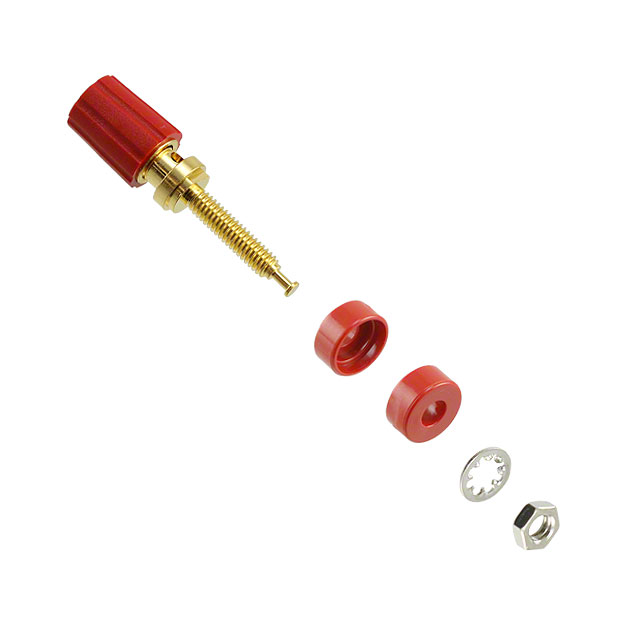

| 产品描述 | BINDING POST GOLD PLATED RED | ||
| 规格参数 | 数值 |
|---|---|
| Series | - |
| Type | Standard |
| Head Style | Knurled |
| Termination | Threaded and Turret |
| Termination Thread | 8-32 |
| Current Rating | 15A |
| Material - Body | Brass |
| Plating - Body | Gold |
| Color | Red |
| Cross Hole Diameter | 0.096" (2.43mm) |
| Head Size | 0.440" OD (11.18mm) |
| Material - Insulation | Polycarbonate (PC) |
| Nut Material | Brass |
| Nut Plating | Nickel |
| Panel Thickness | 0.070" ~ 0.250" (1.77mm ~ 6.35mm) |
| Voltage Rating | 33Vrms/70VDC |
