| 原厂 | Amphenol | 制造商型号 | 132173 |
|---|---|---|---|
| 供应商 |
Element14 HK
新加坡仓
|
供应商型号 | 2396238 |
| 类型 | 同轴连接器-连接器 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

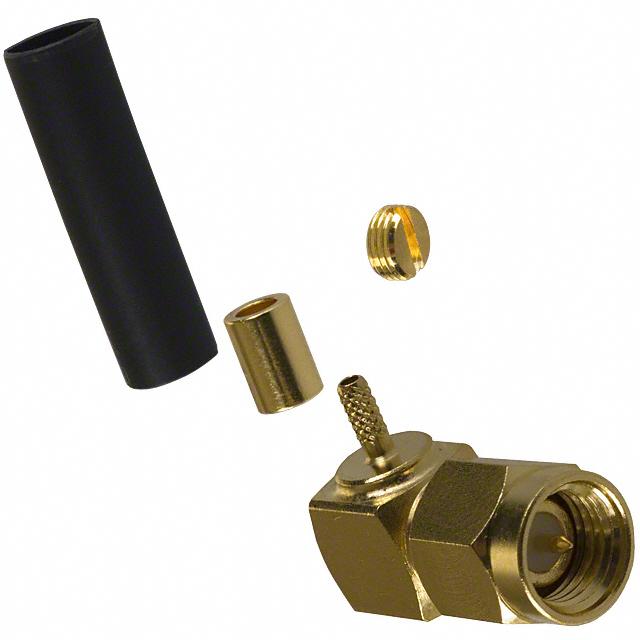

| 产品描述 | SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder | ||
| 规格参数 | 数值 |
|---|---|
| Connector Style | SMA |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-178, 178A, 178B, 196, 196A, M17/93-RG178 |
| Fastening Type | Threaded |
| Frequency - Max | 3GHz |
| Features | Heat Shrink Tubing |
| Housing Color | Gold |
| Ingress Protection | Weatherproof |
| Body Material | Brass |
| Body Finish | Gold |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Voltage Rating | - |
| Operating Temperature | -65°C ~ 165°C |
