| 原厂 | TE Connectivity | 制造商型号 | 6609073-1 |
|---|---|---|---|
| 供应商 | Master | 供应商型号 | 6609073-1 |
| 类型 | 电力线滤波器模块 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

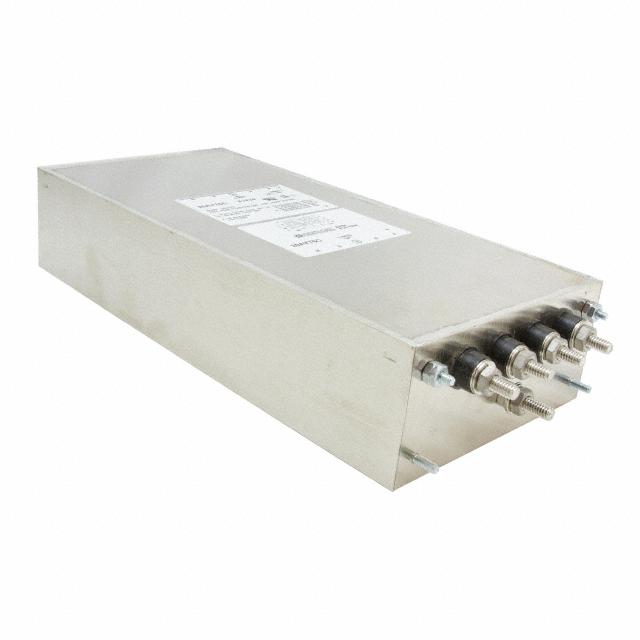

| 产品描述 | LINE FILTER 20A CHASSIS MOUNT | ||
| 规格参数 | 数值 |
|---|---|
| Filter Type | Three Phase (Wye) |
| Configuration | Two Stage |
| Voltage - Rated DC | - |
| Voltage - Rated AC | - |
| Voltage - Rated AC (Phase to Ground/Neutral) | 250V |
| Voltage - Rated AC (Phase to Phase) | 440V |
| Current | 20A |
| Frequency - Operating | 50/60Hz |
| Applications | General Purpose |
| Approvals | CSA, UL, VDE |
| Operating Temperature | -10°C ~ 40°C |
| Mounting Type | Chassis Mount |
| Termination Style | Threaded Post (1/4-20) |
| Inductance | 7mH |
