| 原厂 | TE Connectivity | 制造商型号 | 5435640-6 |
|---|---|---|---|
| 供应商 | Master | 供应商型号 | 5435640-6 |
| 类型 | DIP开关 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

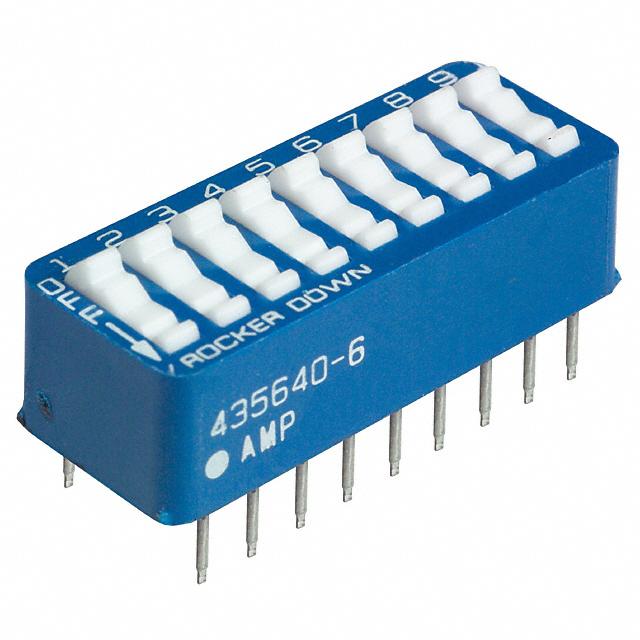

| 产品描述 | Dip Switch SPST 9 Position Through Hole Rocker Actuator 60mA 5VDC | ||
| 规格参数 | 数值 |
|---|---|
| Circuit | SPST |
| Number of Positions | 9 |
| Current Rating | 60mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rocker |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.340" (8.64mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Body Material | Polyester (PET), Glass Filled |
| Length | 0.980" (24.89mm) |
| Operating Temperature | -55°C ~ 105°C |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
