| 原厂 | Texas Instruments | 制造商型号 | SN74LS273NE4 |
|---|---|---|---|
| 供应商 | A7B060 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | SN74LS273NE4 |
| 类型 | 触发器 | 批号 | -- |
| 包装数 | 20 | 包装 | -- |
| 产品描述 | IC D-TYPE POS TRG SNGL 20DIP | ||
| 规格参数 | 数值 |
|---|---|
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Frequency - Clock | 40MHz |
| Max Propagation Delay @ V, Max CL | 27ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400µA, 8mA |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Current - Quiescent | 27mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |

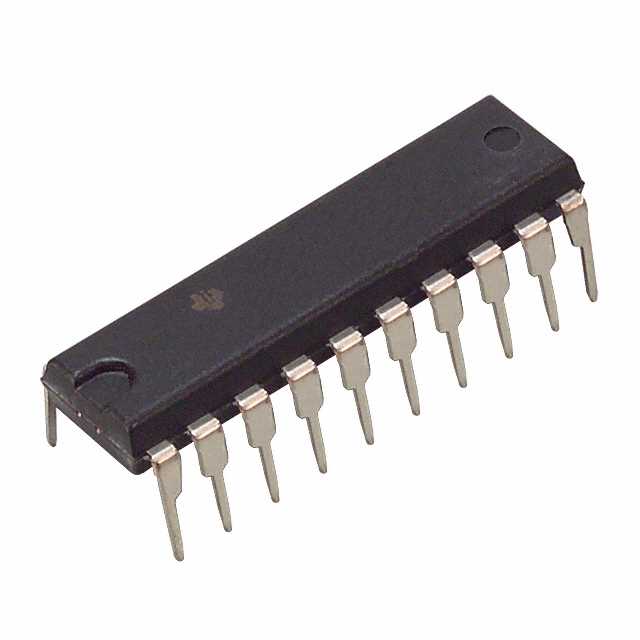

| Package / Case | 20-DIP (0.300", 7.62mm) |
