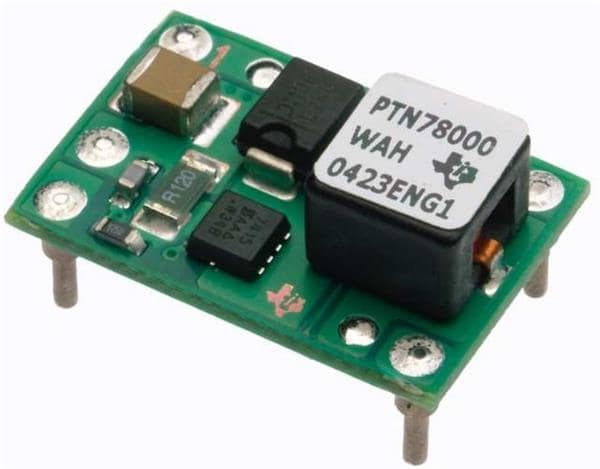

| 原厂 | Texas Instruments | 制造商型号 | PTN78000WAZ |
|---|---|---|---|
| 供应商 | A7B060 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | PTN78000WAZ |
| 类型 | 板安装DC/DC转换器 | 批号 | -- |
| 包装数 | 49 | 包装 | -- |
| 产品描述 | DC DC CONVERTER 2.5-12.6V | ||
| 规格参数 | 数值 |
|---|---|
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 2.5 ~ 12.6 V |
| Voltage - Output 2 | |
| Voltage - Output 3 | |
| Voltage - Output 4 | |
| Current - Output (Max) | 1.5A |
| Power (Watts) | |
| Voltage - Isolation | |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD Module |
| Size / Dimension | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) |
| Supplier Device Package | |
| Control Features |
