| 原厂 | Texas Instruments | 制造商型号 | DCR010503UE4 |
|---|---|---|---|
| 供应商 | A7B060 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | DCR010503UE4 |
| 类型 | 其他电源产品 | 批号 | -- |
| 包装数 | 28 | 包装 | -- |
| 产品描述 | Isolated Module DC DC Converter 1 Output 3.3V 300mA 4.5V - 5.5V Input | ||
| 规格参数 | 数值 |
|---|---|
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 300mA |
| Power (Watts) - Manufacture Series | 1W |
| Voltage - Isolation | 1kV (1000V) |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, SCP |
| Mounting Type | Surface Mount |

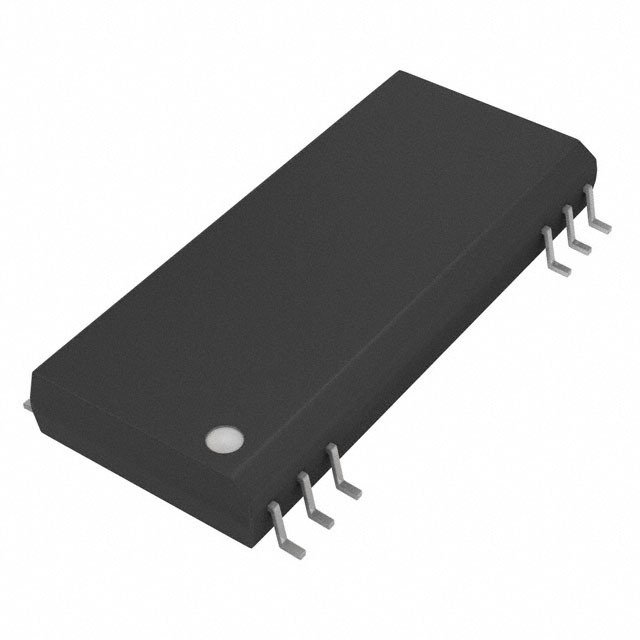

| Package / Case | 28-SOIC (0.295", 7.50mm Width) 12 Leads |
| Size / Dimension | 0.70" L x 0.41" W x 0.10" H (17.9mm x 10.3mm x 2.5mm) |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Power (Watts) - Max | 1W |
