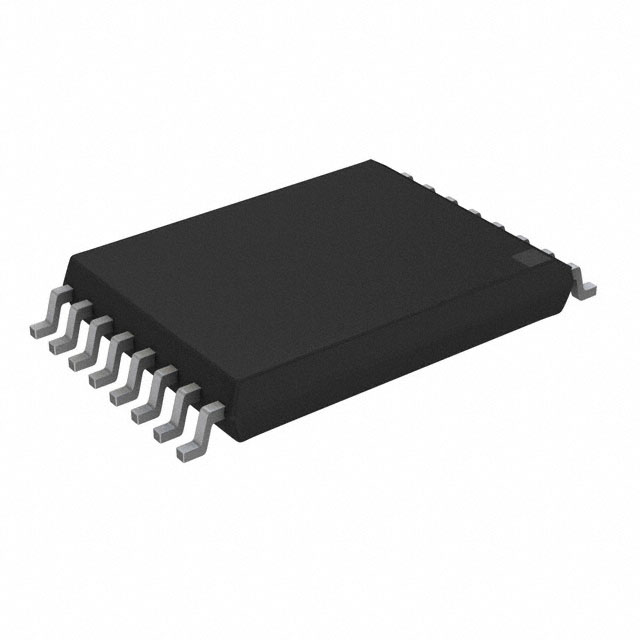

| 原厂 | Texas Instruments | 制造商型号 | ISO7842DWWR |
|---|---|---|---|
| 供应商 | A7B060 货源来自认证的授权分销商，供应商商务原因匿名交易；质量参照易库易平台相关保证条款。 | 供应商型号 | ISO7842DWWR |
| 类型 | 数字隔离器 | 批号 | -- |
| 包装数 | 1000 | 包装 | -- |
| 产品描述 | DGTL ISO 5.7KV GEN PURP 16SOIC | ||
| 规格参数 | 数值 |
|---|---|
| Series | - |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns |
| Pulse Width Distortion (Max) | 4.1ns |
| Rise / Fall Time (Typ) | 1.7ns, 1.9ns |
| Voltage - Supply | 2.25 V ~ 5.5 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.551", 14.00mm Width) |
| Supplier Device Package | 16-SOIC |
