| 原厂 | Honeywell | 制造商型号 | SDP8436-003 |
|---|---|---|---|
| 供应商 | Master | 供应商型号 | SDP8436-003 |
| 类型 | 光电晶体管 | 批号 | -- |
| 包装数 | -- | 包装 | -- |

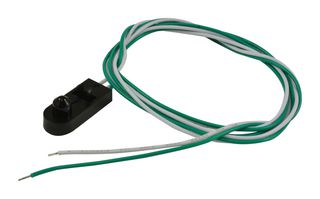

| 产品描述 | PHOTOTRANSISTOR NPN SIDE LOOK | ||
| 规格参数 | 数值 |
|---|---|
| Series | * |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Current - Collector (Ic) (Max) | 17mA |
| Current - Dark (Id) (Max) | 100nA |
| Wavelength | 880nm |
| Viewing Angle | 18° |
| Power - Max | 100mW |
| Mounting Type | Through Hole, Right Angle |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Radial |
